Glass Standoff Fittings

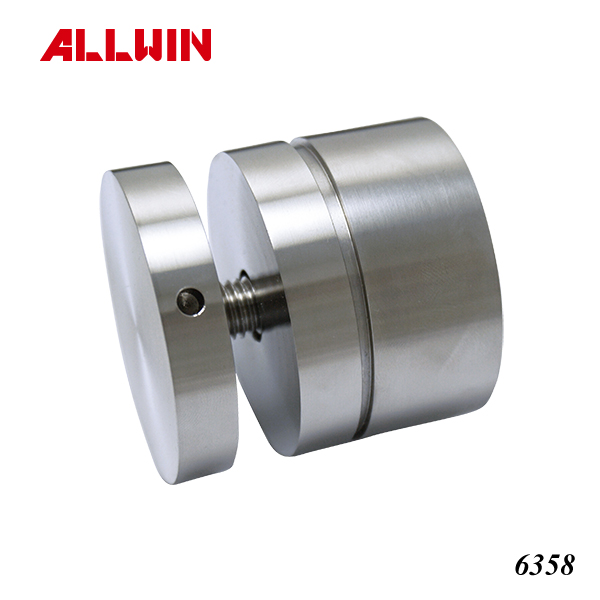

New Design Stainless Steel Adjustable Glass Standoff

Features
New Design Stainless Steel Adjustable Glass Standoff
Item nr.: 6358-5038-BL
Size: Diameter: 50.8mm
Length: 38.1mm
Material: 304 / 316 Stainless Steel
Finish: brushed / polished

Description

This new design stainless steel adjustable glass standoff is crafted for premium frameless glass installations, supporting panels on walls, balustrades, or signs with precision and style. Its modular barrel system lets installers fine-tune panel spacing even after fixing, guaranteeing accurate alignment in sophisticated architectural projects.

  • Adjustable Projection: Core barrel length can be adjusted by approximately 10–20 mm on-site, allowing exact positioning of glass or signage post-installation.

  • Tailored Dimensions: Available in Ø 38.1 mm (1½″) and Ø 50.8 mm (2″) variants to fit different glass thicknesses and standoff depths.

  • Premium Stainless Steel: Made from marine‑grade 304 or 316 with brushed or polished finishes; optional black PVD available for contemporary accents.

  • Glass Compatibility: Designed to securely hold 10–21.5 mm thick laminated or tempered glass, with silicone washer included to prevent direct metal-glass contact.

Type Size Material Finish Model number
Standoff Fittings Diameter: 50.8mm
Length: 38.1mm
 304 / 316 Stainless Steel brushed / polished 6358-5038-BL
Brand name Design style Warranty Place of origin Application
ALLWIN Modern 3 years Taiwan, China Hotel


Packaging & Delivery


One piece in one plastic bag, then in a white box. Appropriate quantity in one carton.
