How Does the Glass Suction Cup Work?

Glass suction cups are indispensable tools for safely handling and installing glass panels in various applications. From construction sites to residential projects, these devices make it easier to lift, move, and position glass with precision while reducing the risk of damage or injury. Their design combines simplicity and functionality, offering a secure grip on smooth surfaces like glass, marble, and tiles.


In this article, we’ll explore the purpose and functionality of glass suction cups, the different types available, and how to choose the right suction cup for your needs. Whether you’re working on large-scale glass installations or smaller projects, understanding the benefits and applications of glass suction cups will help you achieve safer and more efficient results.

〈Extended reading: Navigating Glass Door Hardware Selection〉

What is a Glass Suction Cup?

A glass suction cup is a handy tool designed to lift, move, and install glass panels safely and efficiently. It features a strong rubber pad that creates suction when pressed against a flat surface, allowing it to grip the glass securely. Suction cups often come with handles or levers for easy use, making them ideal for handling large or heavy glass pieces without the risk of slipping or damage. They are commonly used in construction, glazing, and other industries where glass needs to be transported or installed, providing a safe and practical solution for managing fragile materials.

〈 Related Products : Glass Suction Lifter 〉

How Does a Glass Suction Cup work?

A glass suction cup works by creating a vacuum seal between the suction cup’s rubber pad and the surface of the glass. When you press the suction cup against the glass and activate the handle or lever, air is removed from beneath the rubber pad, forming a tight seal. This vacuum creates enough grip to securely hold and lift the glass without slipping. The handle provides a comfortable way to carry or maneuver the glass, making it easier to position or install. This simple yet effective mechanism ensures safety and ease when working with large or heavy glass panels.

〈Extended reading: Understanding Glass Spider Fittings: Types, Applications, and Benefits〉

Benefits of Using Glass Suction Cup

Glass suction cup is very convenient to use. Regardless of the shape of the glass, as long as it can be sealed and is airtight, they can function effectively. Additionally, glass suction cup is highly eco-friendly, as they do not produce light, heat, or electromagnetic interference, ensuring no environmental pollution. They are also safer for glass because they are made of rubber, preventing scratches or damage when attaching or releasing the glass. In industries with high surface quality requirements, traditional lifting tools like hooks or steel cables cannot be used, making glass suction cup the only viable option.

〈Extended reading: Complete Guide to Glass Standoffs: Types, Applications, and Expert Tips〉

Things to Consider When Choosing Glass Suction Cup:

• Glass Weight: The heavier the glass, the larger and more numerous the suction cups need to be to ensure even force distribution and prevent slipping or breakage. Choose suction cups with sufficient holding power that can maintain a vacuum for extended periods for safety.

• Glass Shape and Surface Condition: Flat glass can use standard suction cups, while curved or irregularly shaped glass requires specialized suction cups. Dust, oil, or moisture on the surface can affect suction, so ensure the glass is clean before use.

• Operating Environment (Temperature): Use heat-resistant suction cups in high-temperature environments and cold-resistant ones in low temperatures. For outdoor applications, consider UV-resistant and anti-aging suction cups to prevent loss of elasticity or reduced suction due to environmental factors.

• Connection Method: Manual suction cups are suitable for short-term handling of small glass, while automated operations require a vacuum system. If handling involves height or angle changes, use connectors with cushioning functions for better stability.

• Glass Height Variation: Changes in height can affect vacuum pressure and reduce suction strength. For high-altitude operations, choose suction cups with pressure compensation features to maintain stable suction at different heights.

• Cushioning Distance: When handling glass, cushioning functions in suction cups help reduce impact and prevent breakage. For thin or coated glass, use suction cups with elastic pads or built-in buffer springs for enhanced safety.

Different Types of Glass Suction Cups

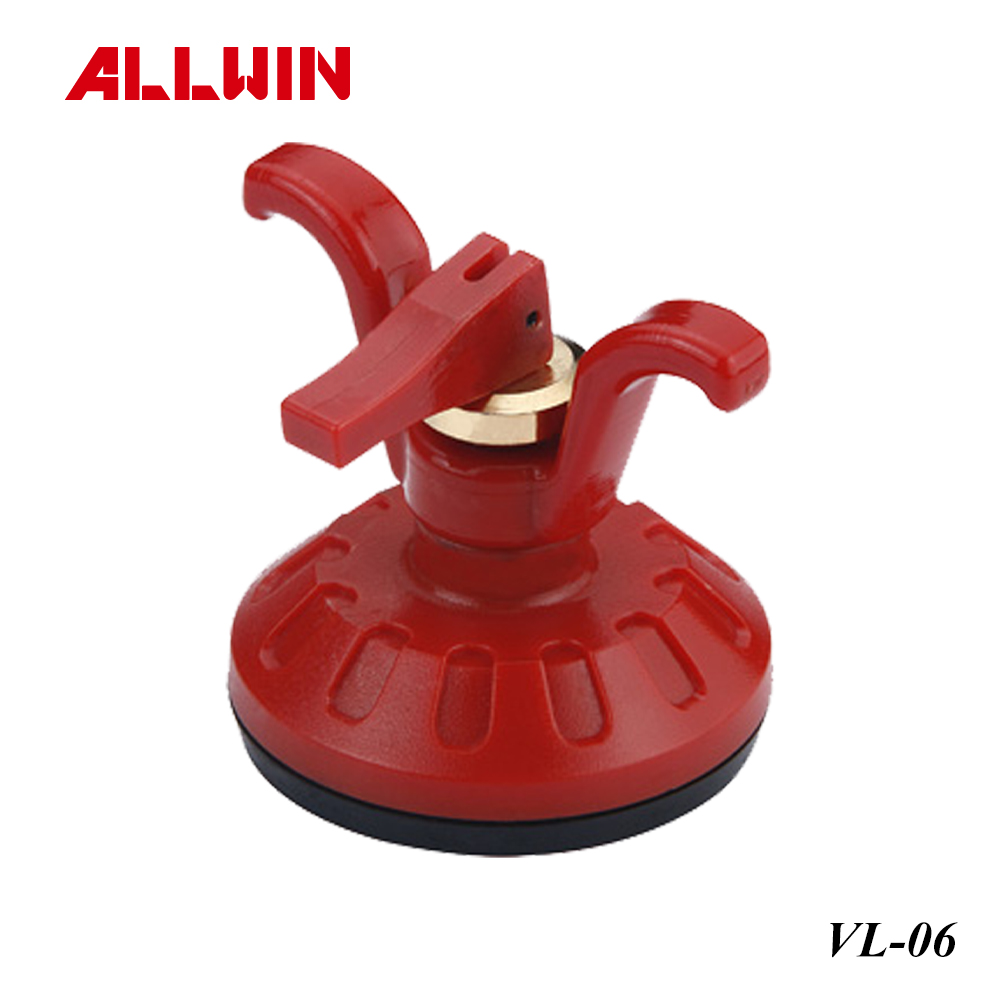

1. Single Suction Cups

Single suction cups feature a single rubber pad and are best suited for handling smaller, lighter glass panels. They are easy to use, portable, and ideal for quick tasks where minimal grip is required. Suitable for daily glass repairs, small window installations, and simple tasks. It is relatively inexpensive, easy to maintain, and ideal for personal or small business use.

〈Extended reading: How to Choose the Right Glass Door Lock for Your Needs?〉

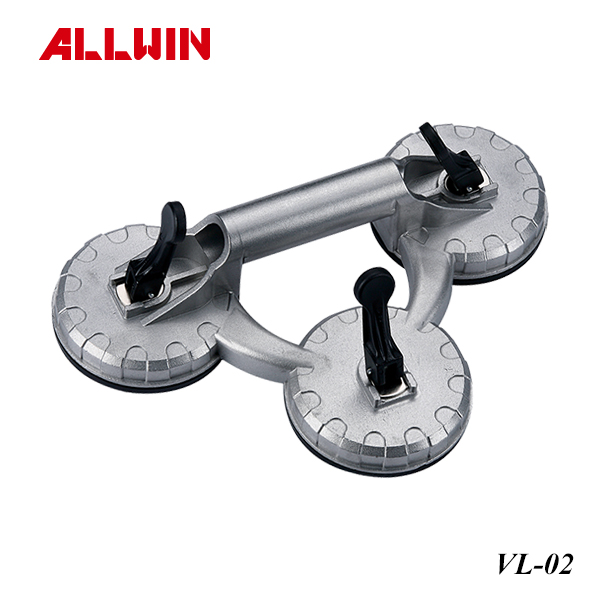

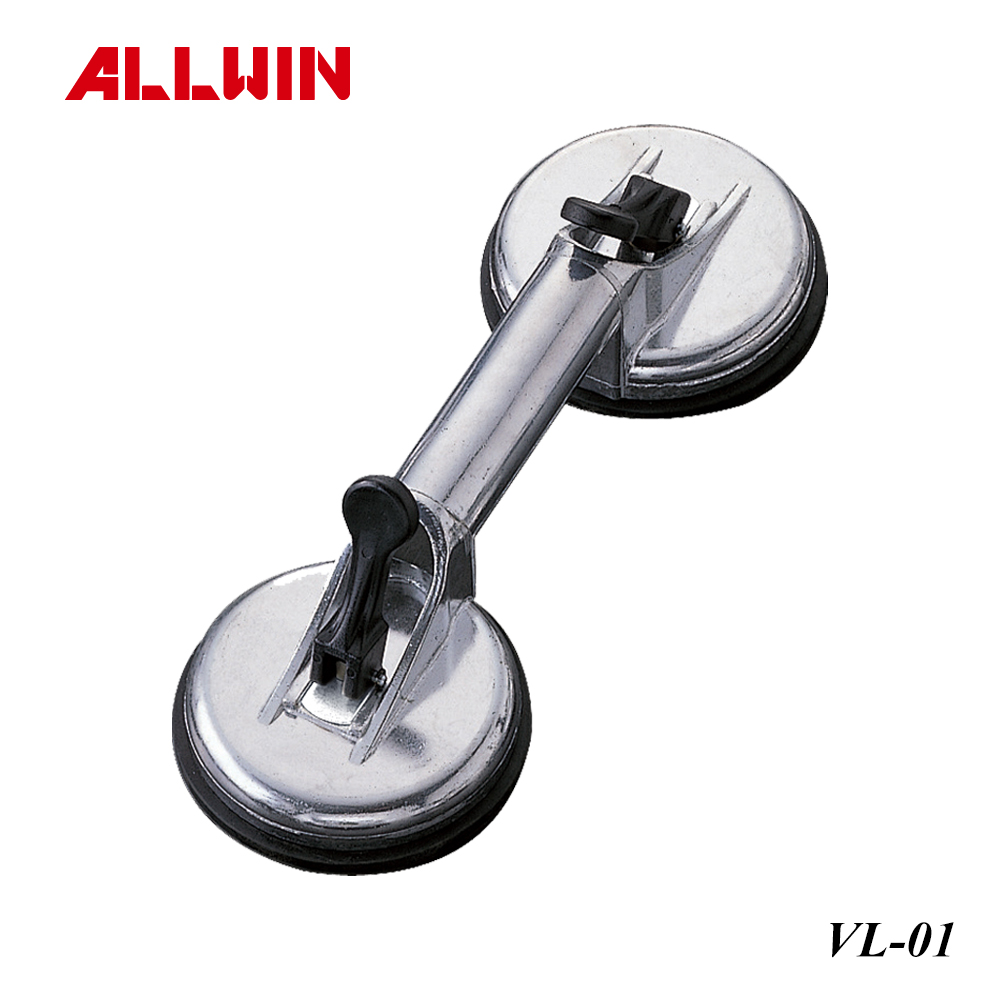

2. Double and Triple Suction Cups

Double and triple suction cups come with multiple rubber pads, offering enhanced stability and grip. These are designed for larger or heavier glass panels, distributing the weight more evenly to ensure safer handling during transport or installation. Suitable for installing large glass doors, showcases, or office partitions. They effectively reduce movement during glass handling, enhance stability, and minimize the risk of glass breakage.

〈Extended reading: What are Glass Door Hinges?〉

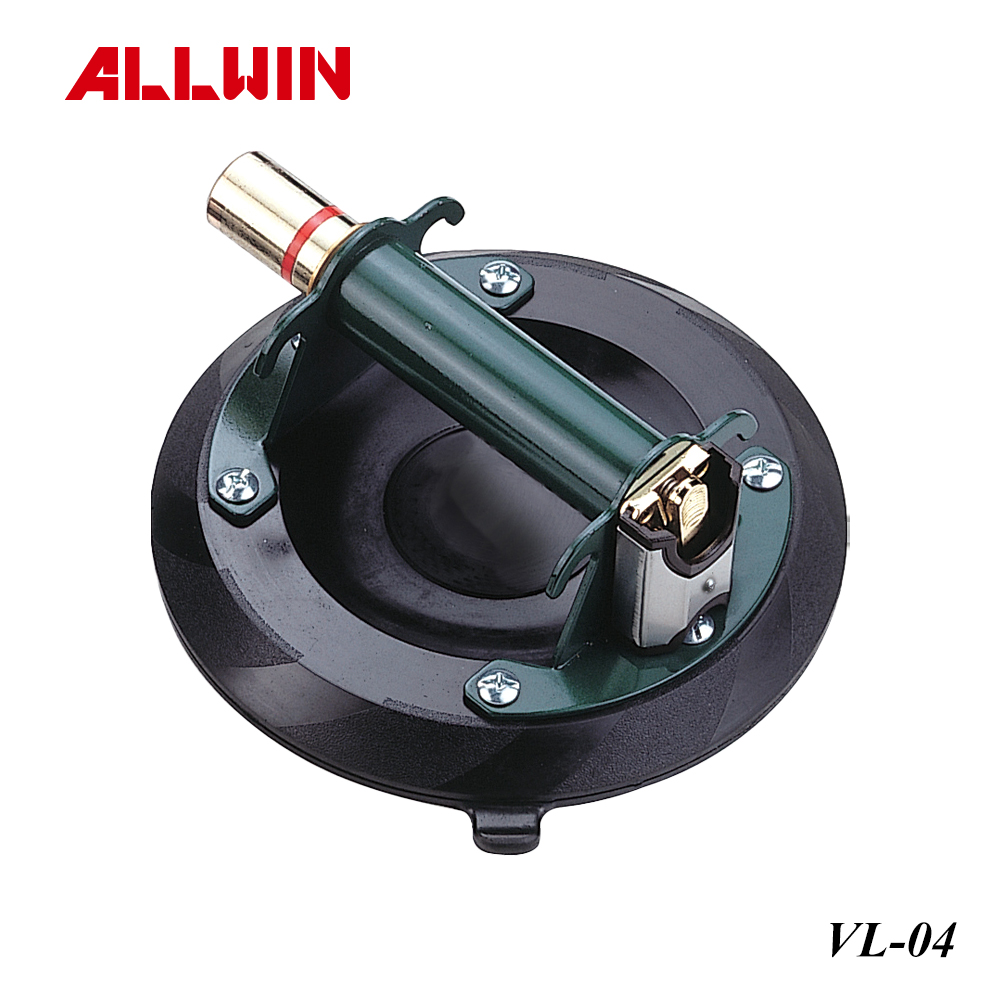

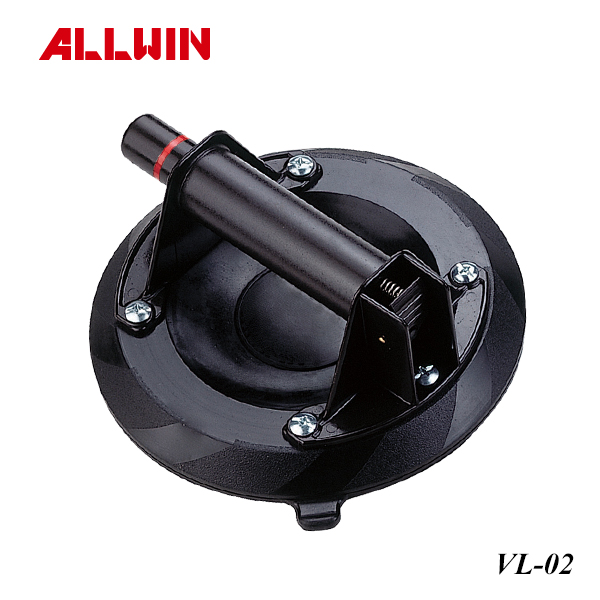

3. Pump-Activated Suction Cups

Pump-activated suction cups use a manual pump mechanism to create a strong vacuum seal, providing extra security when working with delicate or oversized glass pieces. These are particularly useful for tasks requiring precise positioning and reliable hold. Ideal for installing high-value glass products such as bulletproof or custom art glass. It ensures stability during transport and prevents sudden detachment that could cause damage.

〈Extended reading: Glass Spigot Guide: Find the Perfect Fit for Your Glass Balustrade〉

4. Electric Suction Cups

Electric suction cups are equipped with motorized vacuum systems that generate a consistent and powerful grip. These are ideal for high-demand applications in industries such as construction and manufacturing, offering precision and efficiency for handling large glass panels. Suitable for high-rise building glass curtain wall installations and handling large exhibition display glass. It significantly reduces manual labor, improves construction efficiency, and ensures safety during high-altitude operations.

〈Extended reading: What Is a Glass Patch Fitting? Benefits of Patch Fitting Glass Doors for Homes and Offices〉

Step-by-Step Guide on Using a Glass Suction Cup

Before using the glass suction cup, you should first check the equipment's condition to ensure the machine is functioning properly and the suction cup is free from wear, cracks, or other damage to ensure safe use. At the same time, check if the power supply is stable and if the wires are intact, without damage or aging, to avoid any malfunctions during use. Next, test the controller to ensure the buttons are responsive and the operation is smooth and error-free. Finally, you can gently press to test the suction force of the suction cup to confirm it securely adheres to the glass, preventing detachment during use, ensuring the entire operation proceeds smoothly and safely.

〈Extended reading: How to Choose Glass Clamp?〉

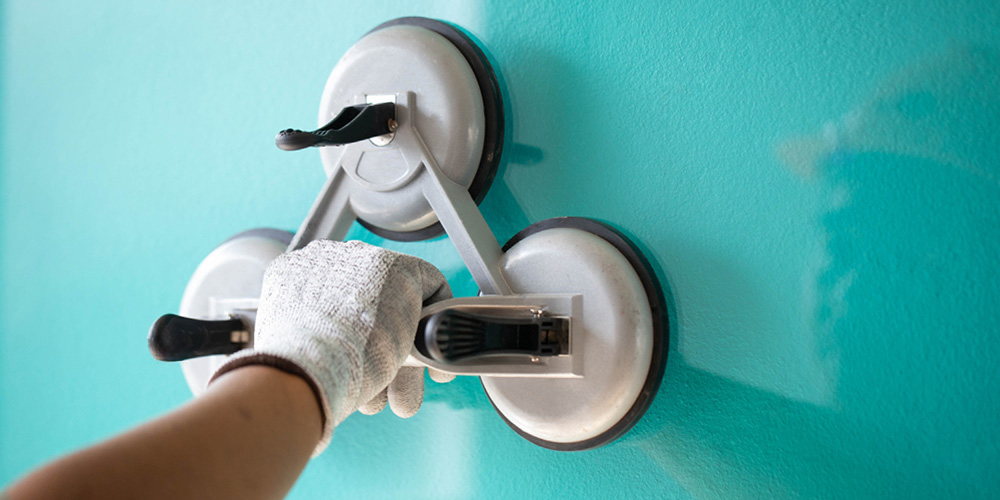

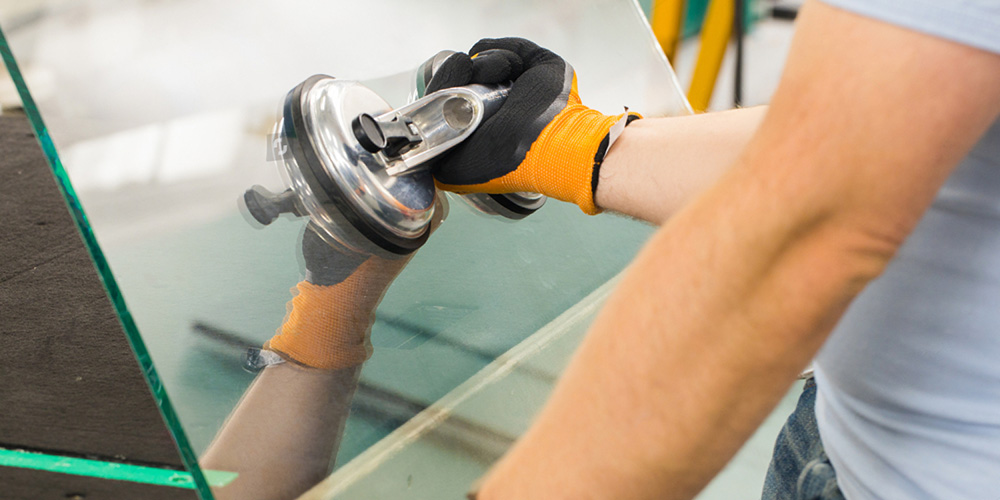

Glass Suction Cup Usage Steps

• Step 1: Clean the glass surface and the suction cup to remove dirt or dust that could weaken the grip.

• Step 2: Place the suction cup’s rubber pad flat against the glass surface.

• Step 3: Press firmly to create a seal and remove air between the rubber pad and the glass. If the suction cup has a lever or pump, activate it to form a secure vacuum.

• Step 4: Test the grip by gently pulling on the handle to ensure it’s securely attached.

• Step 5: Use the handle to lift or move the glass carefully, ensuring the load does not exceed the suction cup’s weight capacity. Always prioritize safety during use.

〈Extended reading: Exploring Glass Door Handles〉

How to Maintain and Care for Your Glass Suction Cup

Proper maintenance of your glass suction cup ensures it stays effective and safe to use. After each use, clean the rubber pad with a damp cloth to remove dirt, dust, or residue that could affect suction. Avoid using harsh chemicals or abrasive materials that might damage the rubber. Check the suction cup regularly for signs of wear, such as cracks or deformities, and replace it if necessary. If the suction cup has a pump or mechanical parts, ensure they are functioning smoothly and apply a light lubricant if needed. Store the suction cup in a cool, dry place to prevent the rubber from deteriorating over time. With regular care, your suction cup will remain reliable and last longer.

〈Extended reading: Maximizing Space and Style Exploring Sliding Glass Doors Hardware Options〉

Conclusion

Understanding the operation of glass suction cups is essential for their safe and effective use in handling glass panels. These tools function by creating a vacuum seal between the rubber pad and the glass surface, allowing for secure lifting and positioning. Proper usage minimizes the risk of damage and enhances efficiency in various applications. If you have any questions about ALLWIN glass suction lifters, please feel free to contact us.

For high-quality glass suction cups and other architectural hardware needs, ALLWIN Architectural Hardware Inc. is a trusted manufacturer. With over 25 years of experience, ALLWIN offers a comprehensive range of products, including architectural railing hardware, glass hardware, and door and window hardware. Our commitment to quality and innovation ensures reliable solutions tailored to diverse project requirements.
